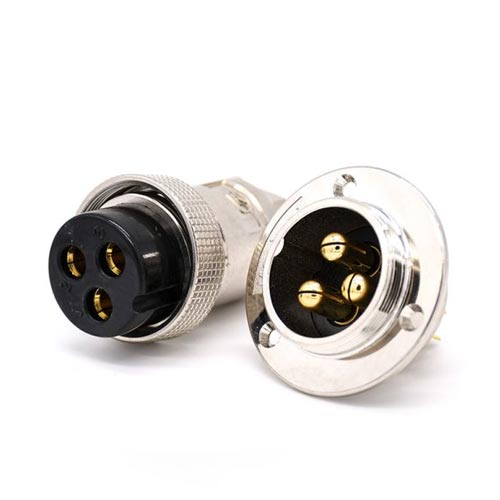

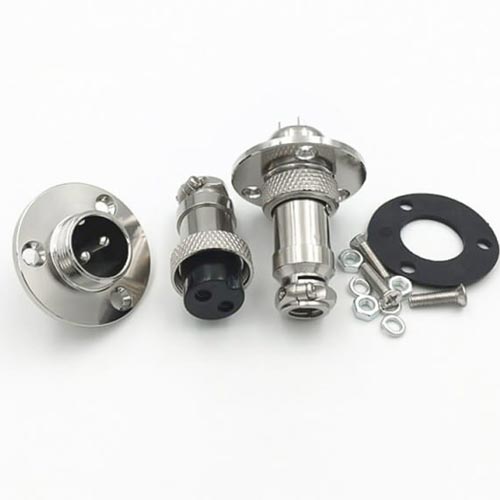

The GX16 3 Hole Flange Connector is a durable, circular aviation-style connector designed for secure panel mounting. Its robust metal shell and reliable 3-pin configuration ensure stable electrical connections in demanding applications like industrial equipment, audio systems, and automotive electronics. Ideal for power and signal transmission.
Contact :
2 Pin
3 Pin
4 Pin
5 Pin
6 Pin
7 Pin
8 Pin
9 Pin
10 Pin
Aviation plug and socket connector, as the name implies, refers to the connector components used in the aviation field. It is a general-purpose connector in the industry say. There are countless connectors for power transmission and signal transmission in the aviation field, and the product series is also extremely wide. Therefore, an aviation plug head socket does not refer to a plug socket of a model. GX16 Flange Connector has a 2-hole, 3-hole, and 4-hole.
GX16 Flange Connector 3 Hole Flange has 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 9 Pin, and 10 Pin.
About Technevo
A global leader in designing and manufacturing connectors, cables, and custom electronic components for a wide range of industries.
Product Type
| Contacts | 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 9 Pin, 10 Pin | Connection Type | Cable Plug, Panel Mount Receptacles |
|---|---|---|---|
| Orientation | Straight | Termination | Solder |
| Color | Black, Blue, Gold, OEM, Silver, White | Mounting Feature | 3 Hole Flange |
| Shell Material | Brass Nut, High Grade Copper Zinc Alloy | Insert Material | Bakelite |
| Vibration Frequency | 10~100Hz | Acceleration | 100m/s Square |
| Wire Gauge | 16-24 AWG |
Basic Attributes
| Gender | Male, Female |
Contact Type
| Contact Material | High Grade Copper(Silverplated/Gold) |
Performance
| Coupling | Threaded Coupling |
Mechanical Characteristics
| Mechanical Operation | ＞500 Mating Cycles |
Environmental Characteristics
| Operating Temperature | -25°C ~ + 85°C | Ingress Protection | IP55 |
|---|
