Ensure reliable solar connections with our PV Red Solar Cable Connectors. Solve loose wiring and weather damage with secure, corrosion-resistant male and female pairs for efficient, durable panel installations.
Photovoltaic connectors all use double fixed connections, which are easy to mount, fast to mount, and have strong universality. They are mainly used in the field of solar energy, solar module connectors, and provide solutions for solar panels and reverse batteries.

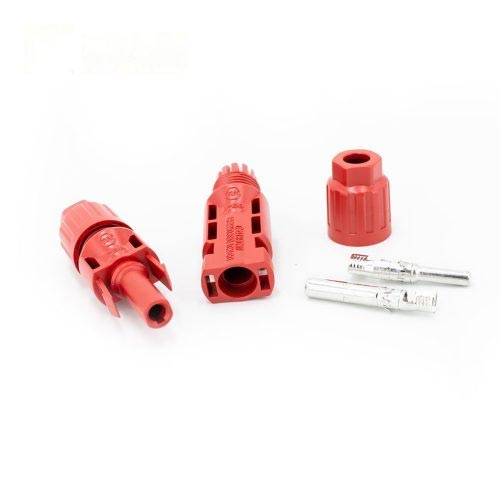

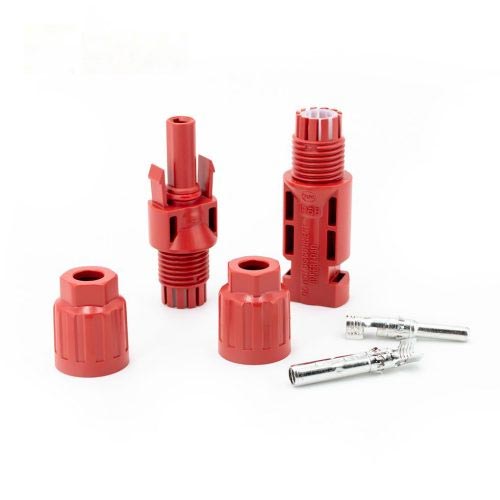

PV Solar Connector
Bigger Copper Pin
PPO Plastic
About Technevo
A global leader in designing and manufacturing connectors, cables, and custom electronic components for a wide range of industries.
Product Type
| Insulation Material | PPO | Termination | Crimp |
|---|---|---|---|
| Color | Red | Mounting Type | Cable Mount |
Contact Type
| Contact Material | Copper,Tin Planted |
|---|
Basic Attributes
| Flame Class | UL94 – V0 |
|---|
Electrical Characteristics
| Contact Resistance | ＜0.5 MΩ | Rated Current | 30A |
|---|---|---|---|
| Rated Voltage | 1000V / 1500V |
Performance
| Coupling | Snap On |
|---|
Environmental Characteristics
| Ingress Protection | IP68 | Operating Temperature | -40°C ~ + 85°C |
|---|
