Ensure secure solar panel connections with our PV Solar Male Cable and Female Panel Connectors. Solve loose or unreliable wiring issues for a stable, weatherproof, and efficient photovoltaic system. Easy installation for lasting performance.
Photovoltaic connectors all use double fixed connections, which are easy to mount, fast to mount, and have strong universality. They are mainly used in the field of solar energy, solar module connectors, and provide solutions for solar panels and reverse batteries.

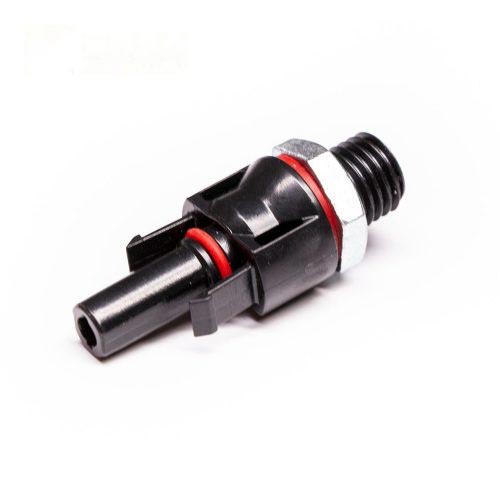

PV Solar Connector
Bigger Copper Pin
PPO Plastic
About Technevo
A global leader in designing and manufacturing connectors, cables, and custom electronic components for a wide range of industries.
Product Type
| Insulation Material | PPO | Termination | Crimp |
|---|---|---|---|
| Connection Type | Panel Mount |
Contact Type
| Contact Material | Copper,Tin Planted |
|---|
Basic Attributes
| Flame Class | UL94 – V0 |
|---|
Electrical Characteristics
| Contact Resistance | ＜0.5 MΩ | Rated Current | 30A |
|---|---|---|---|
| Rated Voltage | 1000V / 1500V |
Performance
| Coupling | Snap On |
|---|
Environmental Characteristics
| Ingress Protection | IP67 | Operating Temperature | -40°C ~ + 85°C |
|---|
