Part NO.: Universal
- Solve loose wire connections with this secure SP13 connector pair.
- Reliable female plug and male socket for stable electrical contacts.
- Easy-to-use pair ensures quick and durable circuit installations.
Contact :
2 Pin
3 Pin
4 Pin
5 Pin
6 Pin
7 Pin
9 Pin

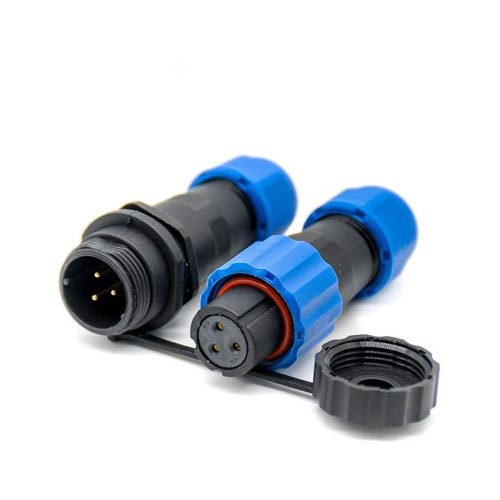

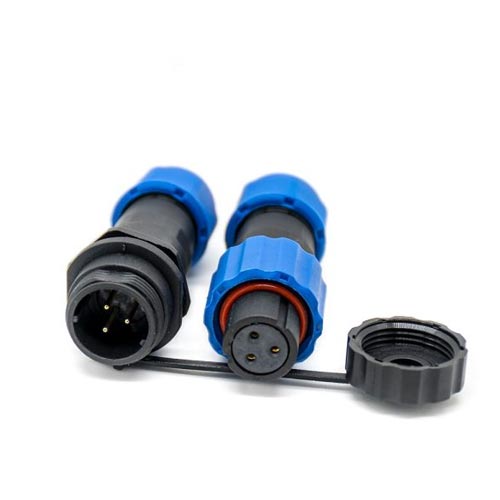

The SP13, SP17 and SP21 connectors are all IP68 connectors, threaded coupling. SP13 is the smallest plastic shell IP68 waterproof connector. This miniature connector is one of our most popular outdoor waterproof connectors.

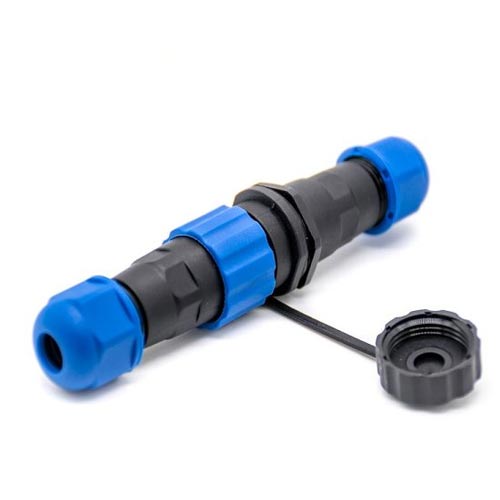

The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions). The IP68 sealing caps are available on both cable connector and panel connector.
About Technevo
A global leader in designing and manufacturing connectors, cables, and custom electronic components for a wide range of industries.
Product Type
| Connection Type | Docking Type | Contacts | 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 9 Pin |
|---|---|---|---|
| Orientation | Straight | Insert Material | PPS |
| Shell Material | PA66 | Termination | Solder |
| Wire Gauge | ≦0.785/18(mm²/AWG) for 4/5/6/7/9 Pin, ≦2/14(mm²/AWG) for 2/3 Pin |
Contact Type
| Contact Material | Brass with Gold Plating |
Performance
| Coupling | Threaded Coupling | Test Voltage | 1000V(1min) for 5/6/7/9 Pin, 1500V(1min) for 2/3/4 Pin |
Electrical Characteristics
| Contact Resistance | 10 MΩ for 9 Pin, 2 MΩ for 2/3 Pin, 5 MΩ for 4/5/6/7 Pin | Rated Current | 13A for 2/3 Pin, 3A for 9 Pin, 5A for 4/5/6/7 Pin |
|---|---|---|---|
| Rated Voltage | 125V for 6/7/9 Pin, 180V for 5 Pin, 200V for 4 Pin, 250V for 2/3 Pin |
Environmental Characteristics
| Operating Temperature | -40°C ~ + 85°C | Ingress Protection | IP68 |
|---|
Mechanical Characteristics
| Mechanical Operation | 500 Mating Cycles |
