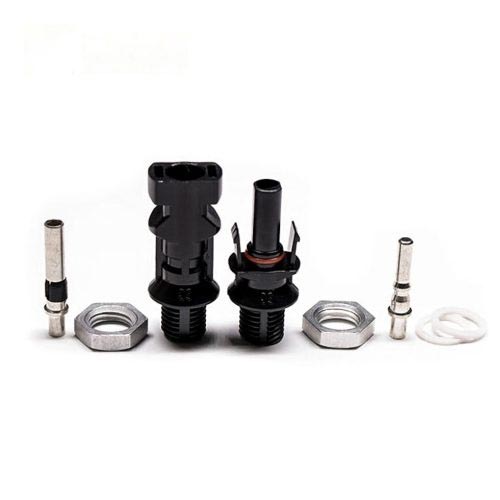

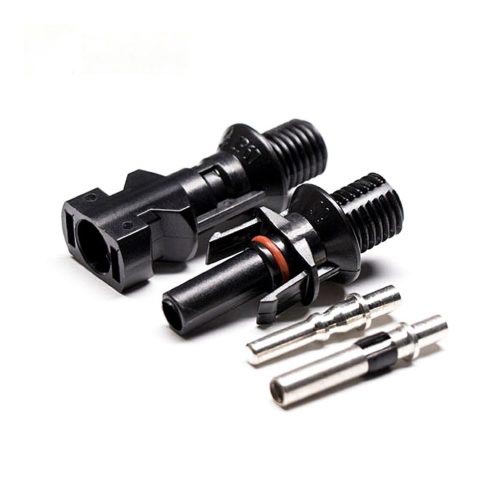

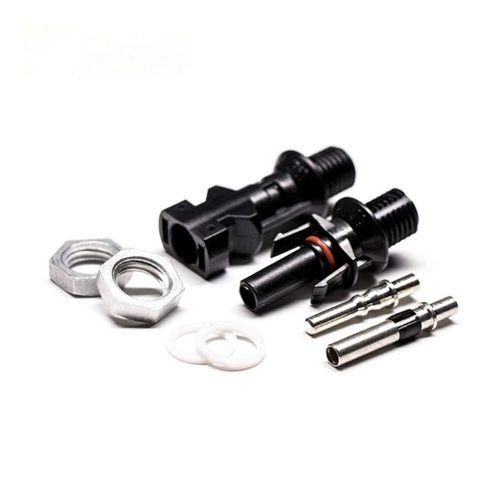

Ensure a secure, weatherproof connection for your solar panels with this male and female PV connector pair. Solve loose wiring and unreliable links for efficient, stable power transfer in your renewable energy system.
Photovoltaic connectors all use double fixed connections, which are easy to mount, fast to mount, and have strong universality. They are mainly used in the field of solar energy, solar module connectors, and provide solutions for solar panels and reverse batteries.
Bigger Copper Pin
About Technevo
A global leader in designing and manufacturing connectors, cables, and custom electronic components for a wide range of industries.
Product Type
| Insulation Material | PPO | Termination | Crimp |
|---|---|---|---|
| Connection Type | Panel Mount |
Contact Type
| Contact Material | Copper,Tin Planted |
|---|
Basic Attributes
| Flame Class | UL94 – V0 |
|---|
Electrical Characteristics
| Contact Resistance | ＜0.5 MΩ | Rated Current | 30A |
|---|---|---|---|
| Rated Voltage | 1000V / 1500V |
Performance
| Coupling | Snap On |
|---|
Environmental Characteristics
| Ingress Protection | IP67 | Operating Temperature | -40°C ~ + 85°C |
|---|
