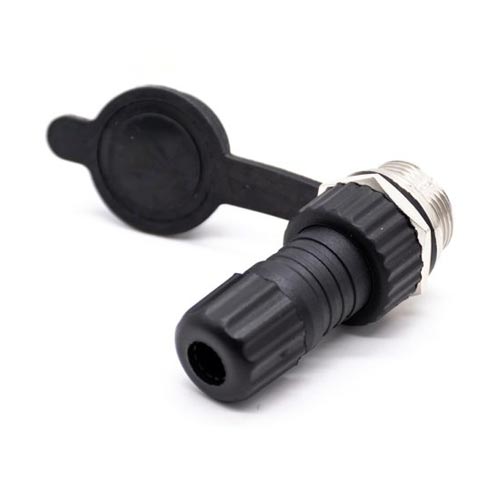

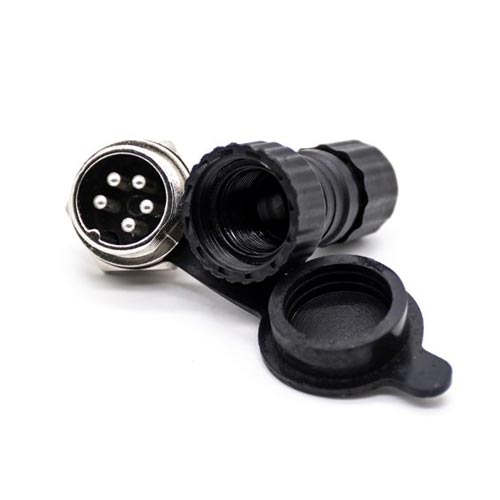

GX16 butt-joint docking cable plug connector with a durable plastic shell. Ideal for secure, reliable electrical connections in avionics, robotics, and industrial equipment. Features a screw-lock mechanism for vibration resistance.
Contact :
2 Pin
3 Pin
4 Pin
5 Pin
6 Pin
7 Pin
8 Pin
9 Pin
10 Pin
Aviation plug and socket connector, as the name implies, refers to the connector components used in the aviation field. It is a general-purpose connector in the industry say. There are countless connectors for power transmission and signal transmission in the aviation field, and the product series is also extremely wide. Therefore, an aviation plug head socket does not refer to a plug socket of a model.
About Technevo
A global leader in designing and manufacturing connectors, cables, and custom electronic components for a wide range of industries.
Product Type
| Contacts | 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 9 Pin, 10 Pin | Connection Type | Cable Plug |
|---|---|---|---|
| Orientation | Straight | Termination | Solder |
| Color | Black, Blue, Gold, OEM, Silver, White | Wire Gauge | 16-24 AWG |
| Shell Material | Brass Nut, High Grade Copper Zinc Alloy | Insert Material | Bakelite |
| Vibration Frequency | 10~100Hz | Acceleration | 100m/s Square |
Basic Attributes
| Gender | Male |
Contact Type
| Contact Material | High Grade Copper(Silverplated/Gold) |
Performance
| Coupling | Threaded Coupling |
Mechanical Characteristics
| Mechanical Operation | ＞500 Mating Cycles |
Environmental Characteristics
| Operating Temperature | -25°C ~ + 85°C | Ingress Protection | IP55 |
|---|
